Дънна платка, GIGABYTE GB B650E EAGLE WF6E

  • GIGABYTE
Дънна платка, GIGABYTE GB B650E EAGLE WF6E
Цена
€165 72 / 324 12 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 22€
+2 години: + 32€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
CreditCredit
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B650E-EAGLE-WIFI6E
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
CPU's supported
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
Chipset
AMD B650
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(OC) / 7200(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC)5200/4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

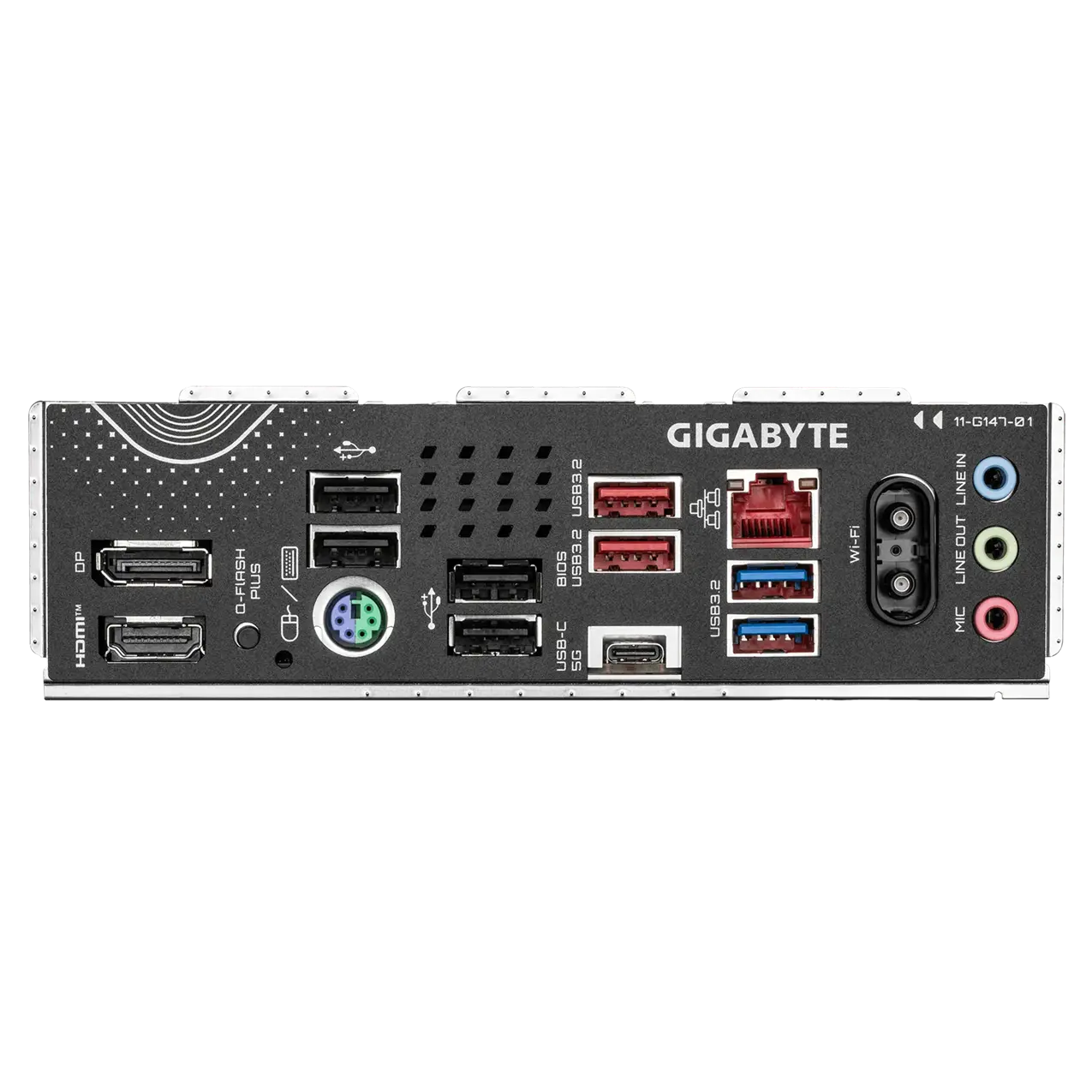

Back Panel Connectors
1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
2 x antenna connectors (1T1R)
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
MediaTek Wi-Fi 6E MT7902
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Bluetooth
5.3
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://www.gigabyte.com/Motherboard/B650E-EAGLE-WIFI6E
ChipsetAMD B650
OSSupport for Windows 10 64-bit
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supportedAMD Socket AM5, support for:
CPU's supportedAMD Ryzen™ 9000 Series Processors/
CPU's supportedAMD Ryzen™ 8000 Series Processors/
CPU's supportedAMD Ryzen™ 7000 Series Processors
Memory typeDual channel memory architecture
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)5200/4800 MT/s memory modules
Form Factor30.5cm x 24.4cm
Form FactorATX Form Factor
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion SlotsChipset:
Expansion Slots-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion Slots-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion Slots- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Expansion Slots-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
Wireless- BLUETOOTH 5.3
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless(Actual data rate may vary depending on environment and equipment.)
Wireless- Support for 11ax 160MHz wireless standard
WirelessMediaTek Wi-Fi 6E MT7902
Wireless* Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Graphics* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Graphics* Support for DisplayPort 1.4 version and HDR.
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
FeaturesSupport for Smart Backup
BIOS1 x 256 Mbit flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
StorageRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage4 x SATA 6Gb/s connectors
Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
Storage-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Storage1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
Storage* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
Storage1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
Storage-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
Storage-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage-AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
Bluetooth5.3
Connectors1 x 24-pin ATX main power connector
Connectors1 x CPU fan header
Connectors3 x system fan headers
Connectors1 x system fan/water cooling pump header
Connectors3 x M.2 Socket 3 connectors
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x USB Type-C® header, with USB 3.2 Gen 1 support
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x reset button
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors1 x 8-pin ATX 12V power connector
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
ConnectorsBack Panel Connectors
Connectors1 x PS/2 keyboard/mouse port
Connectors1 x HDMI port (Note)
Connectors1 x DisplayPort (Note)
Connectors1 x RJ-45 port
Connectors3 x audio jacks
Connectors1 x CPU fan/water cooling pump header
Connectors4 x USB 2.0/1.1 ports
Connectors2 x antenna connectors (1T1R)
Connectors1 x USB Type-C® port, with USB 3.2 Gen 1 support
Connectors2 x USB 3.2 Gen 1 ports
Connectors3 x addressable RGB Gen2 LED strip headers
Connectors2 x USB 3.2 Gen 2 Type-A ports (red)
Connectors1 x 4-pin ATX 12V power connector
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
USBCPU:
USBChipset:
USB- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
USB- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
USB- 4 x USB 2.0/1.1 ports available through the internal USB headers
USBChipset+USB 2.0 Hub:
USB- 4 x USB 2.0/1.1 ports on the back panel
USB- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USB- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетAM5
Форм факторATX
ЧипсетAMD B650E
Тип паметDDR5
Слотове за памет (count)4
Максимална памет (GB)192
M.2 слотове (count)3
SATA портове (count)4
PCIe x16 слотове (count)2
Вграден Wi-FiWi-Fi 6E
Скорост на LAN2.5 Gbps
USB-C портове (count)1
RGB подсветкаНе
Тегло0.00кг

GIGABYTE B650E EAGLE WF6E – Захранете следващото си AMD поколение

Освободете пълния потенциал на процесорите AMD Ryzen 7000/8000 с дънната платка GIGABYTE B650E EAGLE WF6E. С поддръжка на PCIe 5.0, ултра бърз Wi-Fi 6E и стабилно захранване, тази ATX платка е идеална за геймъри и творци, които изискват висока производителност и свързаност.

Ключови Предимства

  • PCIe 5.0 готовност – Изживейте светкавични скорости на трансфер за най-новите графични карти и NVMe SSD.
  • Wi-Fi 6E и 2.5GbE LAN – Насладете се на игра без забавяне и стрийминг без прекъсване с най-новите безжични и кабелни мрежови технологии.
  • Подобрено охлаждане – Разширени радиатори и термоподложки поддържат системата хладна при големи натоварвания.
  • DDR5 поддръжка – Двуканална DDR5 памет с поддръжка на овърклок за светкавична многозадачност.

Технически Спецификации

СпецификацияСтойност
СокетAM5
Форм факторATX
ЧипсетAMD B650E
Тип паметDDR5
Слотове за памет4 (двуканален)
Максимална памет192 GB
M.2 слотове3 (1x PCIe 5.0, 2x PCIe 4.0)
SATA портове4 (SATA III)
PCIe x16 слотове2 (1x PCIe 5.0, 1x PCIe 4.0)
Wi-FiWi-Fi 6E
LAN2.5 GbE
USB-C портове1 (USB 3.2 Gen2x2)
RGB подсветкаНе

Какво има в кутията

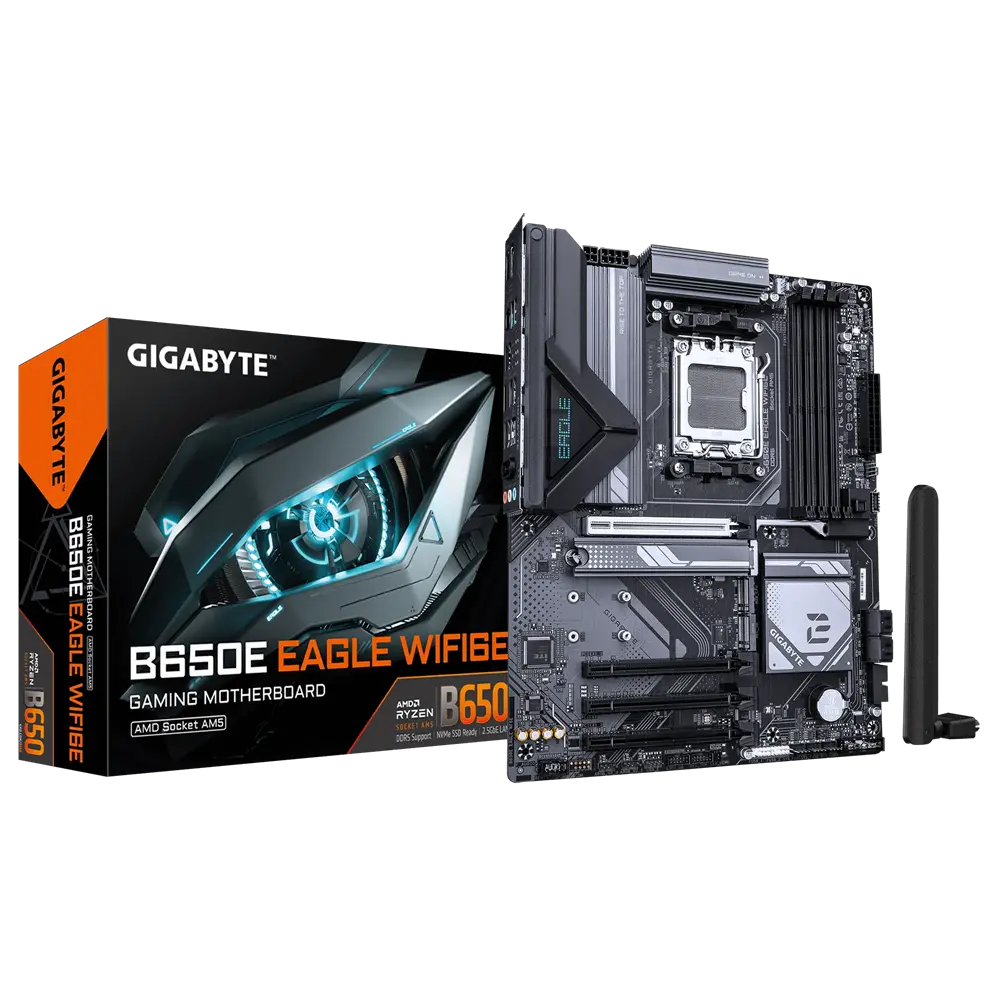

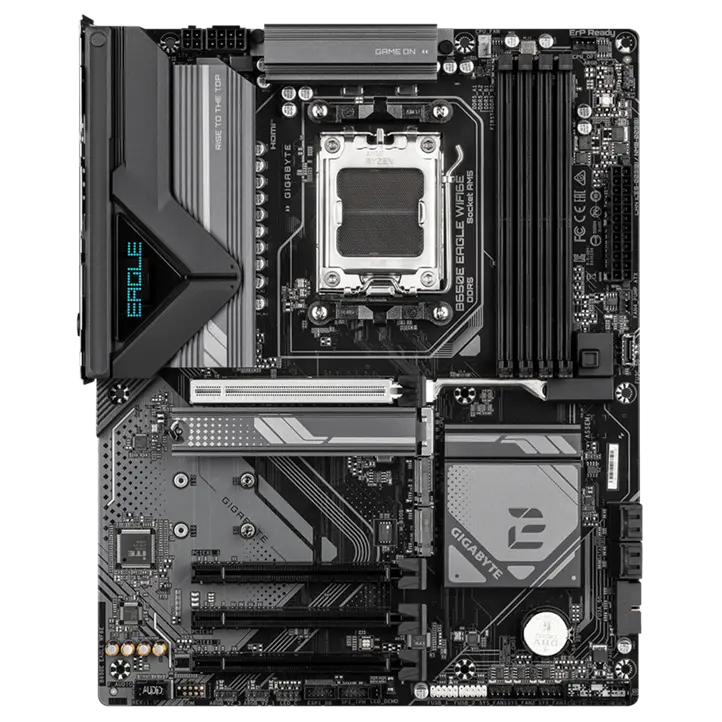

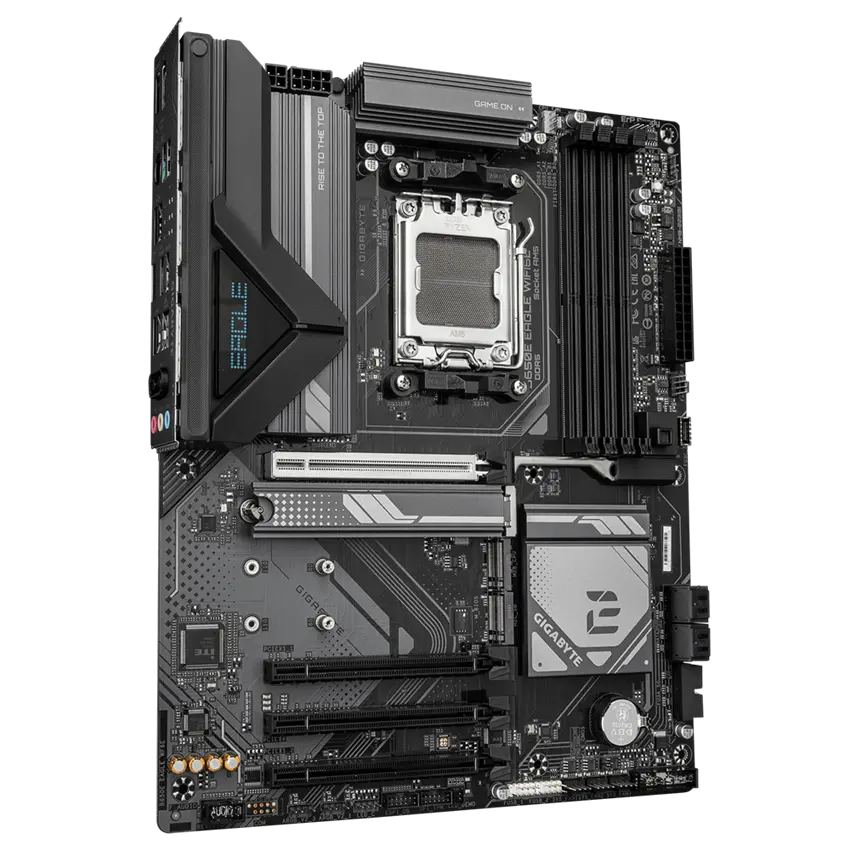

  • Дънна платка GIGABYTE B650E EAGLE WF6E
  • Ръководство за потребителя
  • Заден панел за I/O
  • 2x SATA III кабела
  • Wi-Fi антена
  • DVD с драйвери
SKU: B650E EAGLE WF6E 1.0 © 2026 Xtreme.bg
Kobo
Amazon

Запишете се за нашият Бюлетин

Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.

Ако имате въпроси свържете се с нас!

info@xtreme.bg

+359 886 177 222

Информация

Потребител

Методи за Плащане

  • Наложен Платеж
  • Кредитна/Дебитна Карта
    MastercardVisaGoogle PayApple Pay
  • Банков Превод
  • На изплащане ПБ Лични Финанси
Copyright © 2023 Xtreme.bg - Всички права запазени. Онлайн магазин вървящ на XCore
Затвори
